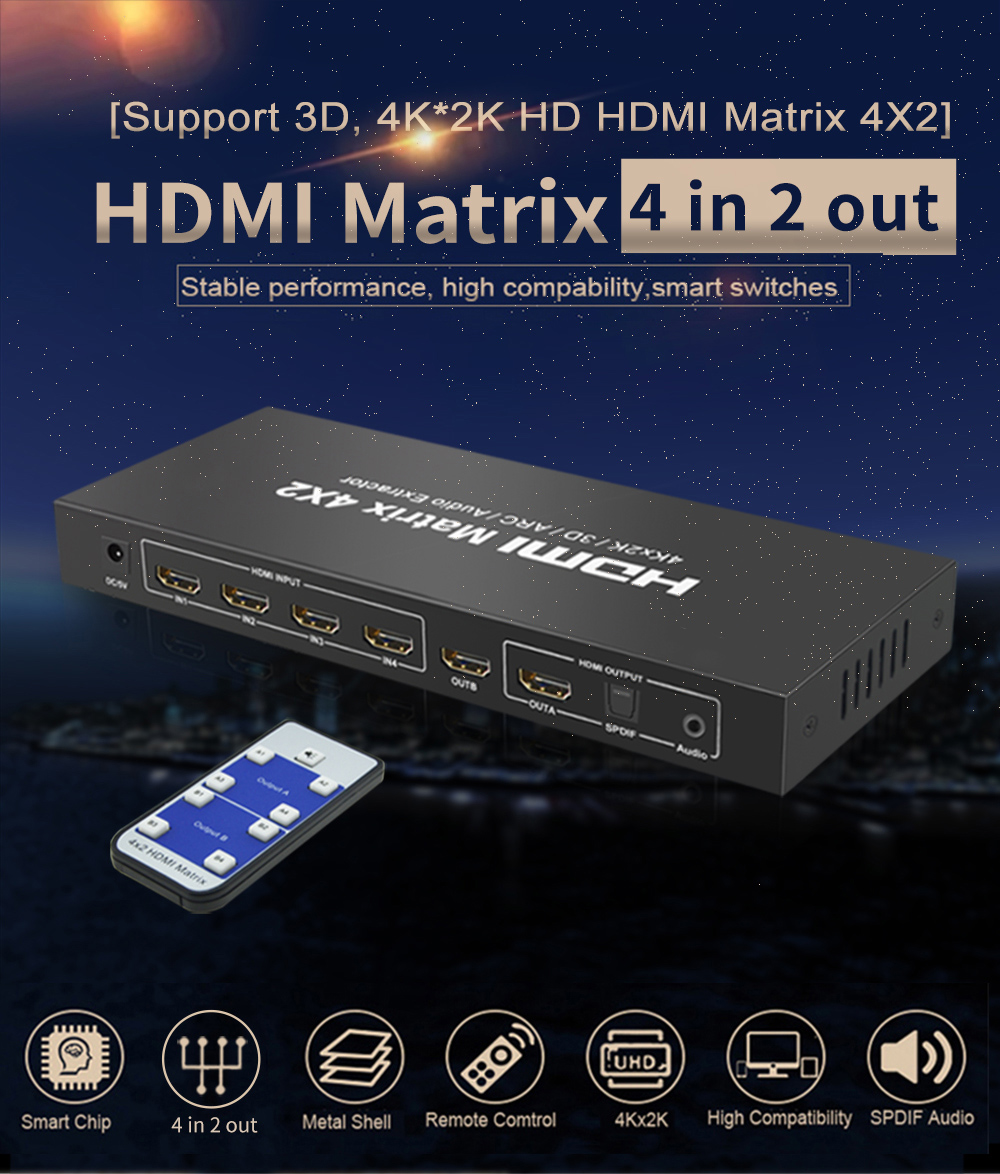

4x2 HDMI True Matrix(Ultra HD 4Kx2K),4 In 2 Out HDMI Splitter Switcher Switch with Optical,3.5mm Audio Output,IR Remote
Introduction:

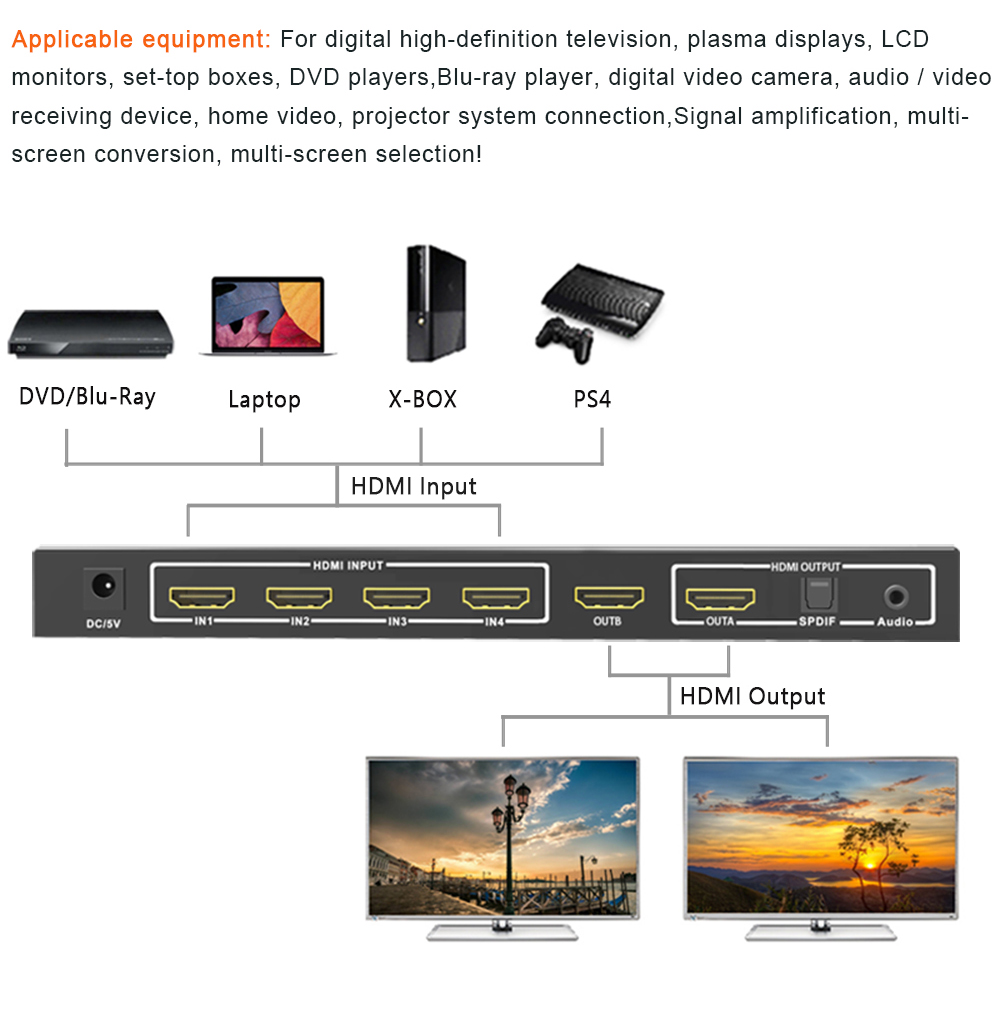

The HDMI 4x2 Matrix can connect four HD Source with two HD Display,which can also do extra audio output by the SPDIF port or Headphone port.It can switch or distribute the four HD Source to the two HD Display easily. The matrix also can support ARC function,which can upstream the TV audio to the amplifier.
Our devices offer solutions for noise, space and security concerns, data center control,information distribution, conference room presentation,school and corporate training environments.
FEATURE:
1.Four HDMI input support only HDMI single mode input.
2.The output A support extra audio output by SPDIF port and 3.5mm Headphone port.
3.HDMI to achieve the synchronization of audio signal separation.There are ADV/2.0CH/5.1CH three kinds of audio mode options
4.Support Full-HD 1080P, Full 3D

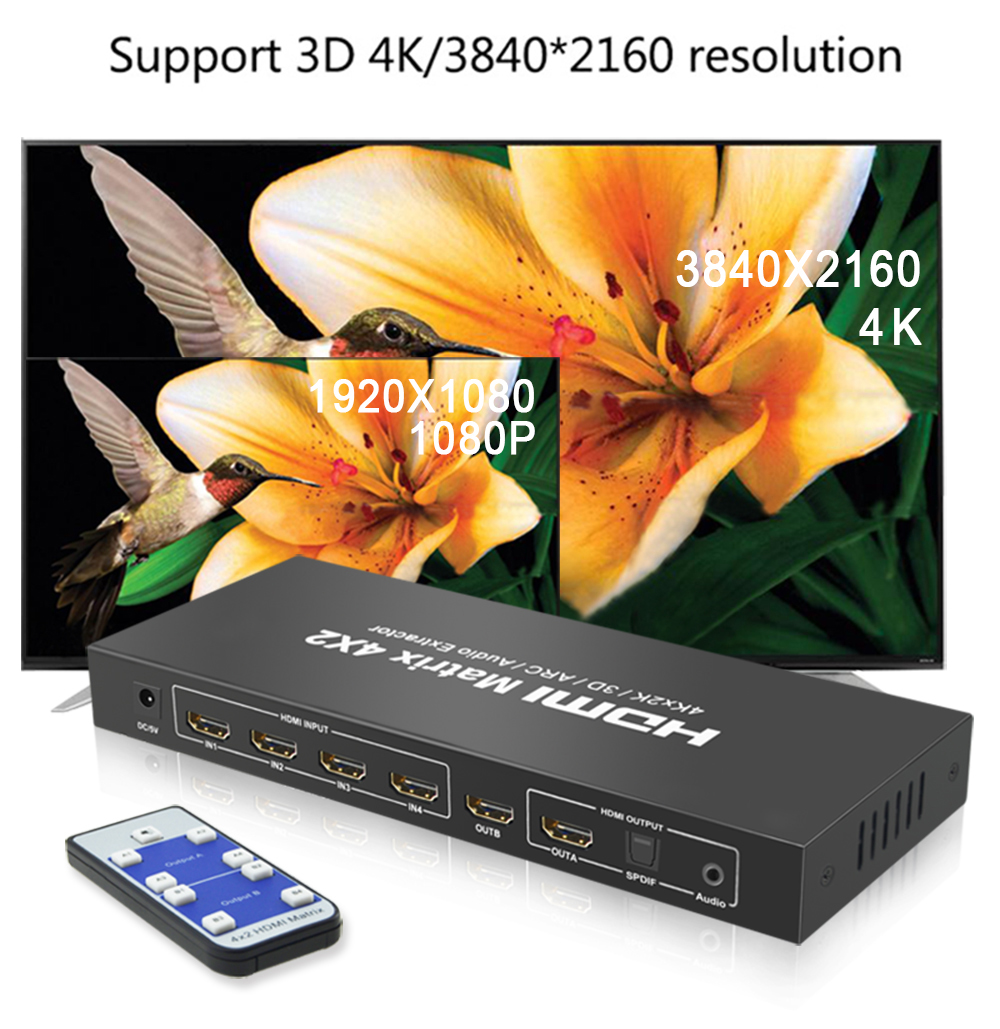

5.Support 4k*2k resolution
6.Support deep color 30bit,36bit,48bit
7.Support Blue-Ray 24/50/60fs/HD-DVD/ xv YCC
8.Digital audio format, as DTS-HD / Dolby-true HD/LPCM7.1 / DTS / Dolby-AC3 /DSD
9.Support signal retiming
10.Support input up to 15 meters AWG24 HDMI standard cable length,output up to 25 meters AWG24 cable length

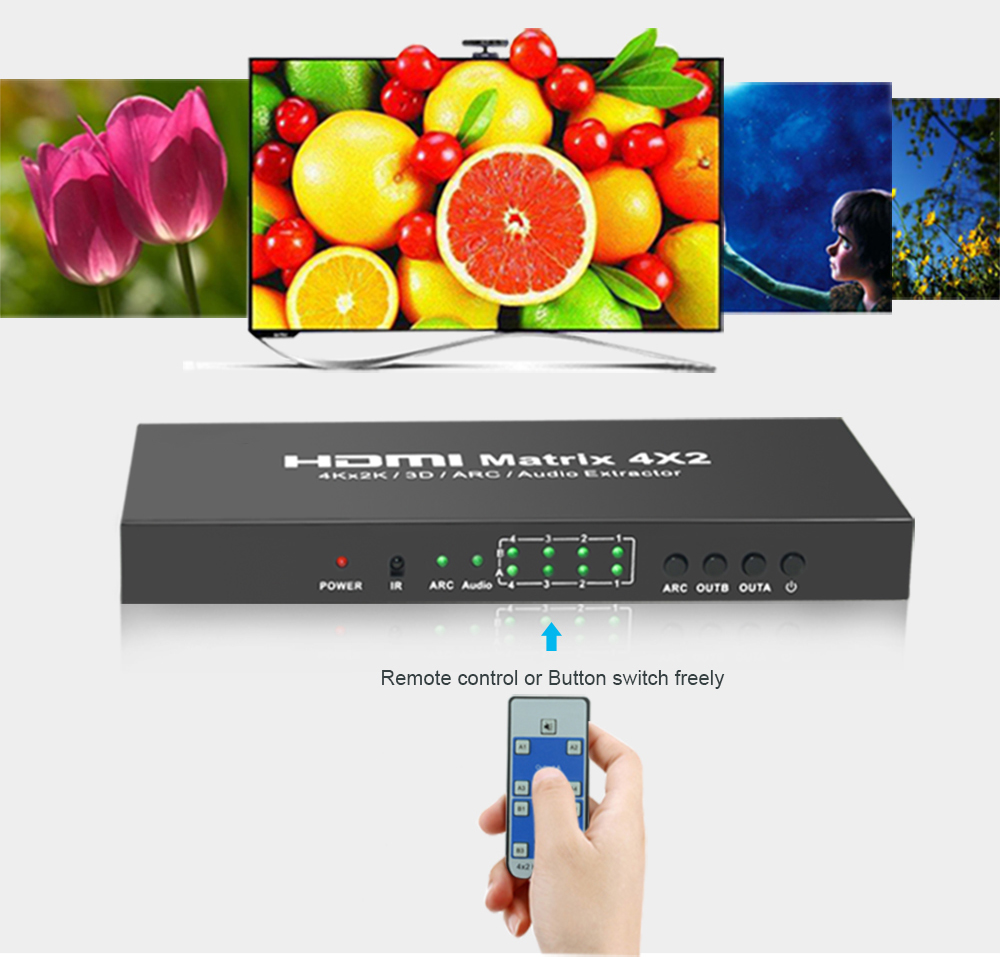

11.Inputs can be switched with the IR remote control, also can be controlled by two switch buttons
12.The SPDIF audio output format can be chose by pressing the switch key or the remote,It can come back to the default the input 1 status when restarted or reset
13.Led status Light allow the user to know the working status easily
14.No loss of quality
15.Installs in minutes
16.Need DC5V power supply
SPECIFICATION:
HDMI STANDARD:HDMI support 4K*2K input and 3D
HDMI resolution:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format：24bit/deep color 30bit,36bit, 48bit
Support audio format：HD/Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD
Audio output:DIF and 3.5mm Stereo
Max transmission bandwidth:340MHz
Max baud rate:10.2Gbps
Input/Output TMDS signal：0.5~1.5Volts p-p
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:15m AWG24 HDMI standard cable
Output cable distance:≤25m AWG24 HDMI standard cabl
Max working current:1300m
Power adapter format:Input:AC(50HZ,60HZ)100V-240V;Output;.DC5V/2A
Operating Temperature range:(-15 to +55℃)
Operating Humidity range:5 to 90%RH (No Condensation)
Packing List:
1.Main Adapter- 4Kx2K HDMI Matrix 4x2 with Audio Extractor
2.DC5V Power Supply( EU US UK AU Power Plug for yor choice)
3.IR Remote Control
4.User Manual
|
